Detailinformationen |
|||
| Marke: | Xiangqian | Material: | Nylon,PA66 |
|---|---|---|---|
| Verbindungsstückname: | IP67 M25 Wasserdichter Outdoor-Stecker | Stift: | 8(2+1+5) Kerne |
| Aktuelle Bewertung: | 30a | Nennspannung: | 600V |
| Proben: | Frei | Lieferzeit: | 5 Tage |
Produkt-Beschreibung

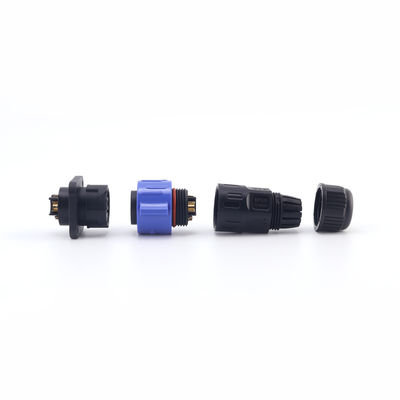

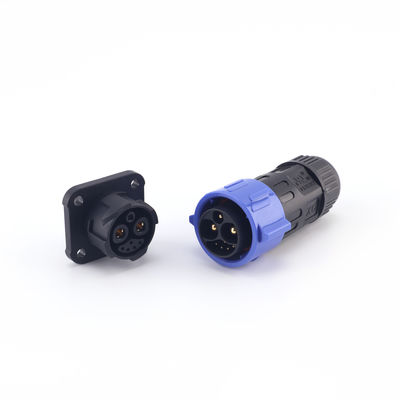

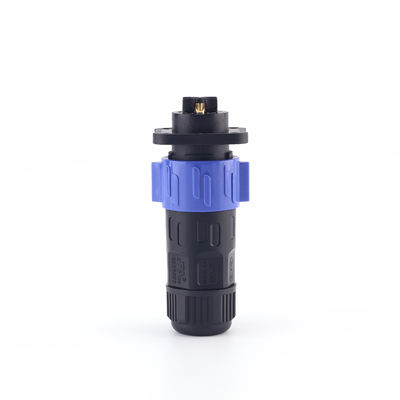

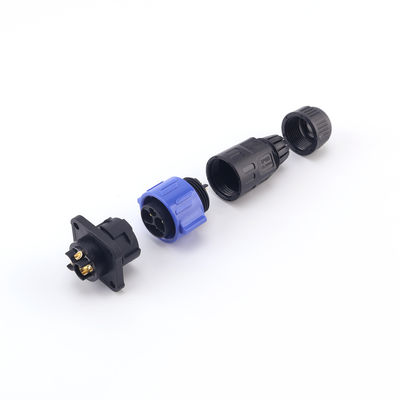

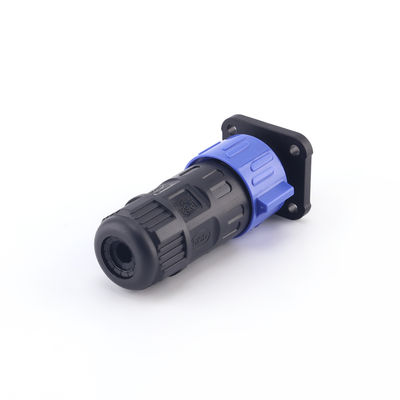

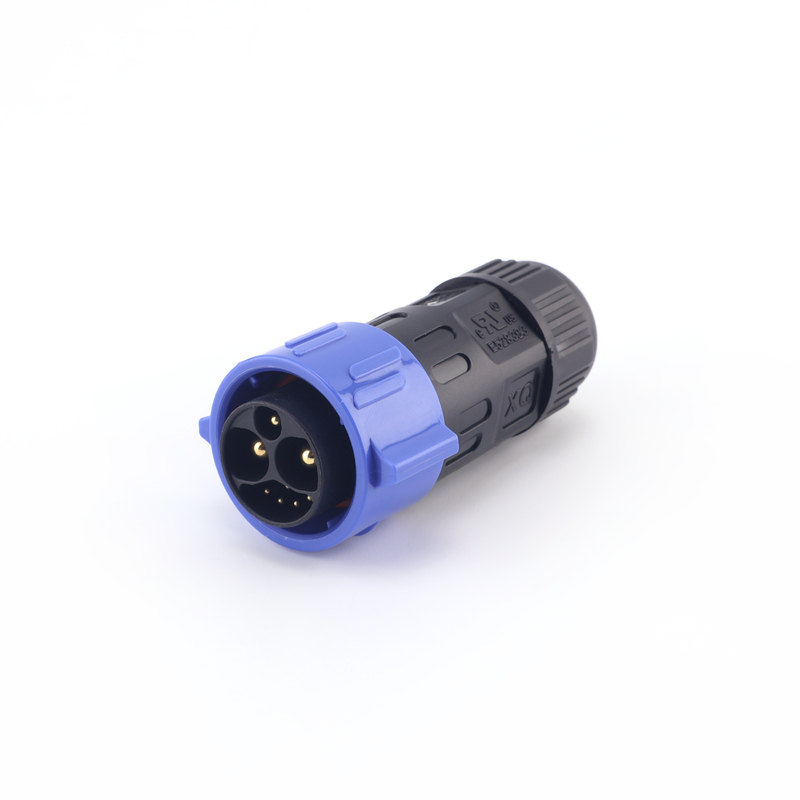

Factory Price Outdoor LED Light IP67 Male Panel Mount M25 2+1+5 Pin Plug Nylon Waterproof Electric Connectors
The self-locking M25 female panel 2+1+5 PIN waterproof connector is an outdoor connector designed specifically for high-power power and signal composite transmission systems.
Its housing is made of high-strength nylon (PA66), offering excellent high-temperature resistance, impact resistance, flame retardancy, and UV protection. The panel-mount design ensures stable installation and is suitable for mounting on device ports or power supply panel panels.
The unique 2+1+5 PIN design (two main power pins + one ground pin + five signal pins) supports synchronous transmission of power and control signals. Its compact structure and clear wiring significantly improve device integration and system stability.
The self-locking connection structure ensures easy and reliable insertion and removal, strong vibration resistance, and prevents accidental loosening. With an IP67 protection rating, it maintains excellent sealing performance even in rain, dust, and humid environments.
Product Features and Advantages:
Self-locking structure: Quick and secure insertion/removal, preventing loosening.
Multi-core design: Integrated power and signal transmission, simplifying wiring.
High protection rating: IP67 dustproof and waterproof, suitable for various outdoor environments.
Nylon shell: Lightweight and corrosion-resistant, with flame-retardant and UV-resistant properties.
Panel mounting: Securely fixed, facilitating device integration.
Parameters:
| Cable OD | Ø6.0-14.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Parameter | Common typical values or ranges | Notes |
| Voltage Rating | 250 V / 400 V / 450 V | Some models support high voltage levels (such as solar or power systems) |
| Current Rating | Main power pin test (2 pins) | 30A ~ 35A |
| Contact Resistance | ≤5 mΩ | Some outdoor connector designs require ≤ 5 mΩ to reduce heat and voltage drop |
| Signal pin test | Low power pin test (5 pins) | 3A ~ 5A |
| Dielectric Withstanding Voltage | Several thousand volts (e.g. 1.5 kV / 60 s, etc.) | Responding to surges or transient overvoltages |
| Insulation Resistance | ≥10 MΩ / 500 VDC | Prevent leakage and insulation breakdown |
| Operating Temperature | –40°C to +105°C (or higher) | For outdoor environments with temperature changes |
| Ingress Protection | IP68 | Indicates that it can be immersed in water for a long time under specified conditions and prevent dust from entering |
| Media durability / humidity / salt spray test | Often pass salt spray test / high humidity aging test | For long-term outdoor reliability |
